4 Spindles PCB CNC Drilling Machine D44
Product Specification:
- No. of Spindle：4 :
- Spindle Speed：160k rpm / min :
- Processing area of each axis：580mm×730mm :
- XYZ axial movement stroke：600mm×825mm×55mm :
- Number of tools per axis：220 pcs :
- Routing diameter：φ0.6-φ3.175mm :
X Y axis all use high precision Renishaw linear scale X Y axis linear motor
- X Y axis all use high precision Renishaw linear scale
- X Y axis linear motor
- ATC tool length,tool diameter detection
- West wind spindle
- Z axis independent control
| Model | 4 Spindles PCB CNC Drilling Machine D44 |
| No. of Z axis | 4 |
| No. of Spindle | 4 |
| Spindle Speed | 160k rpm / min |
| Processing area of each axis | 580mm×730mm |
| XYZ axial movement stroke | 600mm×825mm×55mm |
| Number of tools per axis | 220pcs |
| Drilling diameter | φ0.5-φ6.35mm |
| Milling diameter | φ0.6-φ3.175mm |
| XY Axial max. movement speed | 85m/min |
| Ｚ Axial max. movement speed | 30m/min |
| System resolution ratio | 0.001mm |
| Positioning Accuracy | ±0.01mm |
| Repeatability Accuracy | ±0.005mm |
| Routing precision | ±0.05mm |
| Drilling precision | ±1mil |
| Power requirements | 3P/380V/50Hz (±5%); 3KW |
| Compressed air requirement | 300L/min |
| Cooling water requirement | 18℃-25℃ |
| Environmental temperature | 20℃-25℃ |
| Ambient humidity | 50%-75% |
| Noise | ≤75dBA |
| Machine Size | 3.27m×2.0m×1.55m（L×W×H） |
| Machine Weight | 7500kg |
1. Trade Term: FOB Shenzhen USD by T/T in advance.
2. Discount is allowed against your quantity.
3. OED/OEM is accepted.
4. Delivery will be carried out by Express or your requirement.
5. Lead Time: 2~7 days after payment.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
Hãy là người đầu tiên nhận xét “4 Spindles PCB CNC Drilling Machine D44”
Bạn phải bđăng nhập để gửi đánh giá.
Sản phẩm tương tự
PCB CNC Machine

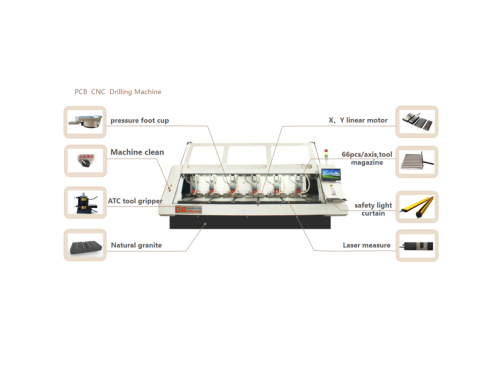

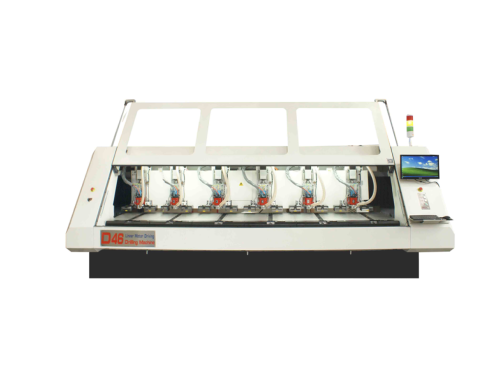

Product Specification:
