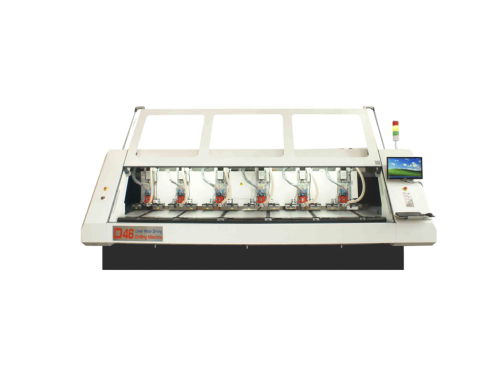

6 Spindles PCB CNC Drilling Machine D46
Product Specification:
- No. of Spindle：6 :
- Spindle Speed：160k rpm / min :
- Processing area of each axis：580mm×730mm :
- XYZ axial movement stroke：600mm×825mm×55mm :
- Number of tools per axis：220 pcs :
- Routing diameter：φ0.6-φ3.175mm :

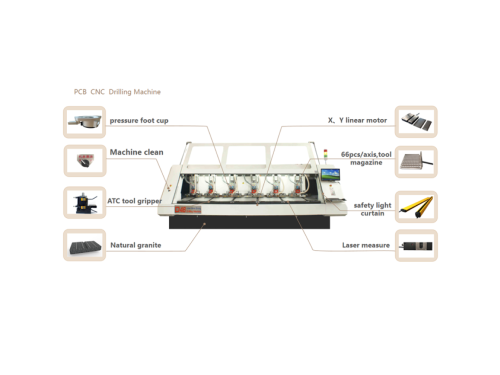

X Y axis all use high precision Renishaw linear scale X Y axis linear motor
- X Y axis all use high precision Renishaw linear scale
- X Y axis linear motor
- ATC tool length,tool diameter detection
- West wind spindle
- Z axis independent control
| Model | 6 Spindles PCB CNC Drilling Machine D46 |
| No. of Z axis | 6 |
| No. of Spindle | 6 |
| Spindle Speed | 160k rpm / min |
| Processing area of each axis | 580mm×730mm |
| XYZ axial movement stroke | 600mm×825mm×55mm |
| Number of tools per axis | 220pcs |
| Drilling diameter | φ0.5-φ6.35mm |
| Milling diameter | φ0.6-φ3.175mm |
| XY Axial max. movement speed | 85m/min |
| Ｚ Axial max. movement speed | 30m/min |
| System resolution ratio | 0.001mm |
| Positioning Accuracy | ±0.01mm |
| Repeatability Accuracy | ±0.005mm |
| Routing precision | ±0.05mm |
| Drilling precision | ±1mil |
| Power requirements | 3P/380V/50Hz (±5%); 3KW |
| Compressed air requirement | 300L/min |
| Cooling water requirement | 18℃-25℃ |
| Environmental temperature | 20℃-25℃ |
| Ambient humidity | 50%-75% |
| Noise | ≤75dBA |
| Machine Size | 4.43m×2.0m×1.55m（L×W×H） |
| Machine Weight | 1100kg |
1. Trade Term: FOB Shenzhen USD by T/T in advance.
2. Discount is allowed against your quantity.
3. OED/OEM is accepted.
4. Delivery will be carried out by Express or your requirement.
5. Lead Time: 2~7 days after payment.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
